OEM ODM Single Suction Pump Body

PUMP CASTINGS Industry Knowledge Extension

What Are The Key Considerations For Selecting A Pump Casting Supplier?

Selecting the right pump casting supplier is an important decision that can have a significant impact on the success of a pumping system. When choosing a pump casting supplier, there are several key considerations that should be taken into account. Here are some of the factors to consider:

(1)Experience and Expertise: The supplier should have a proven track record of delivering high-quality pump castings that meet the specific needs of their customers. They should also have a deep understanding of the materials, manufacturing processes, and quality control measures required to produce reliable pump castings.

(2)Manufacturing Capabilities: The supplier should have the necessary equipment, facilities, and personnel to produce pump castings in the required quantities and to the required specifications. They should also be able to provide additional value-added services such as machining, heat treating, and surface finishing.

(3)Material Selection: The pump casting supplier should be able to recommend the best materials for the specific application, taking into account factors such as temperature, pressure, corrosion resistance, and mechanical strength.

(4)Quality Control: The supplier should have robust quality control measures in place to ensure that the castings meet the required standards. This may include non-destructive testing, dimensional inspection, and material testing.

(5)Cost: The supplier should be able to provide competitive pricing without sacrificing quality or reliability.

(6)Customer Service: The supplier should be responsive to customer needs, provide timely and effective communication, and be willing to work collaboratively to ensure that the pump castings meet the specific requirements of the application.

Beipiao Power Steel Casting is a professional Chinese pump casting supplier integrating research and development, casting, machining, and sales. And our company has gained the ISO9001 quality system certification and other certificates. Worthy of your beliefs.

Difference Between Single Suction Pump Body And Double Suction Pump Body

Centrifugal pumps are commonly used in various industries, such as agriculture, manufacturing, and water treatment. They work by converting mechanical energy into hydraulic energy, which is then used to move fluids. One of the key design differences between centrifugal pumps is the type of suction body they use. Single suction pump bodies and double suction pump bodies are two common types of centrifugal pump designs that differ in the number of suction inlets.

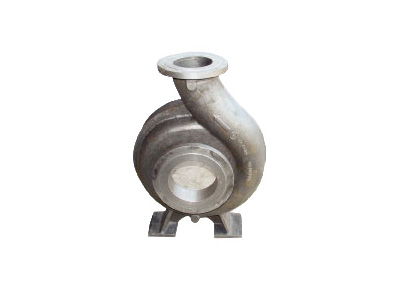

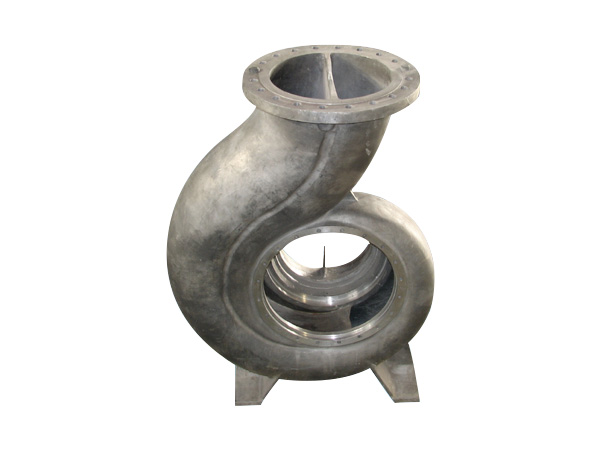

(1)Single Suction Pump Body

A single suction pump body has only one suction inlet, located on one side of the impeller. The fluid enters the impeller through this inlet, and the rotation of the impeller causes the fluid to move toward the discharge outlet. Single suction pumps are often used for low to medium flow rates and low to medium head applications. They are typically less expensive and easier to install than double suction pumps.

One of the main advantages of single suction pumps is that they can be designed with smaller impeller diameters, which reduces the pump's overall size and cost. Single suction pumps are also less prone to clogging since they have only one suction inlet, which makes them suitable for handling fluids with small solid particles.

However, single-suction pumps have a few drawbacks. Since the impeller is only partially balanced, they tend to create a radial thrust on the shaft, which can lead to bearing wear and tear. Single suction pumps are also less efficient than double suction pumps since they rely on a smaller impeller to generate the same flow rate.

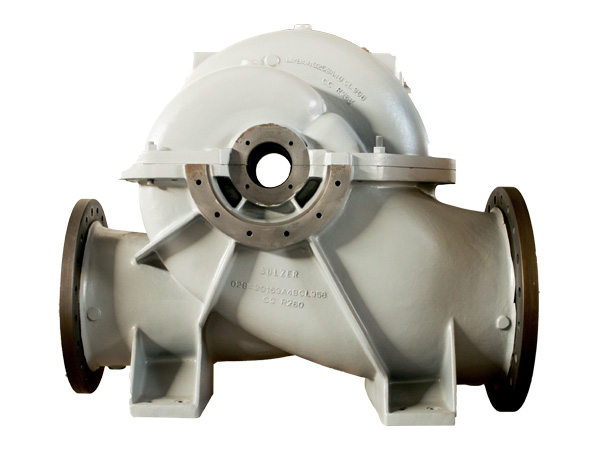

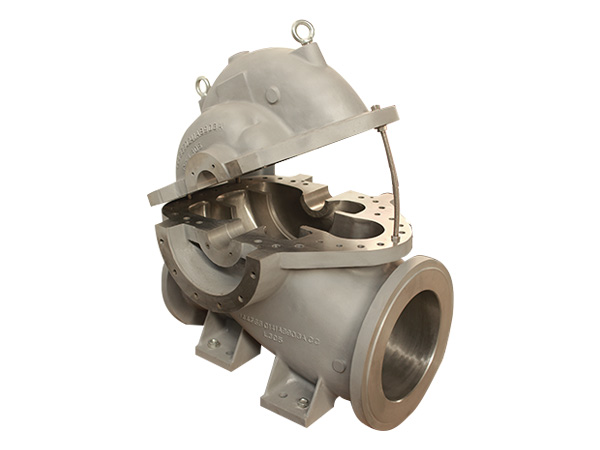

(2)Double Suction Pump Body

In contrast, a double suction pump body has two suction inlets, one on either side of the impeller. The fluid enters the impeller from both sides, which balances the axial thrust on the impeller, reduces the load on the bearings, and increases the pump's efficiency. Double suction pumps are typically used for large flow rates and high-head applications.

One of the main advantages of double suction pumps is their balanced design. The double suction inlet reduces the axial thrust on the impeller, which means that the bearings experience less wear and tear. This leads to longer pump life and reduced maintenance costs. Additionally, double-suction pumps are more efficient than single-suction pumps since they have a larger impeller that can generate a higher flow rate.

However, double-suction pumps are typically more expensive and larger than single-suction pumps. They also require more maintenance since they have more components and are more complex in design. Double suction pumps are also more prone to clogging since they have two suction inlets, which makes them less suitable for handling fluids with small solid particles.

What are the advantages of using centrifugal pump body casting in the manufacturing of industrial pumps?

Centrifugal pump body casting offers several advantages in the manufacturing of industrial pumps. Firstly, it allows for intricate and complex geometries to be accurately reproduced, optimizing fluid flow and efficiency. Secondly, casting enables the use of a wide range of materials, including corrosion-resistant alloys, enhancing the pump's durability and suitability for various liquids. Additionally, casting techniques like investment casting or sand casting permit cost-effective production of pump bodies in bulk, catering to industry demands. The process also minimizes the need for post-machining, reducing production time and costs. Furthermore, casting facilitates the integration of design features like volute shapes and impeller passages, improving overall pump performance. In summary, centrifugal pump body casting stands as a pivotal process in the industry, contributing to enhanced pump functionality, material versatility, cost efficiency, and timely production.
